Product parameters

Cell material:  Monocrystalline silicon

Pmax(Power at Maximum under STC) ：100W

Imp(Current at Max Power, A)：             5.55A

Vmp(Voltage at Max Power, V)：          18V

Voc(Voltage at Open Circuit, V)：          21.6V

Isc(Current at Short Circuit,A)：             6.11A

STC(Standard Testing Condition： 1000W/Square Meter AM=1.5 25 C Degree

Solar Cell Efficiency：      19.6%

Size of module：      1175*540*3MM

Temperature Range:                             -20±60℃

Tolerance Wattage:                               ±5%

Weight per piece:                                 2.2kg

Junction Box Type:                              IP65

Length of Cables:                                90cm

Module Efficiency:                                19%

Output tolerance:                                 ±5%

Standard Test Conditions:      Am1.5 100mw/cm225℃

Temperature coefficients of Isc: 0.065+/-0.015%/℃

Temperature coefficients of Voc:    -(2.23+/-0.1)/℃

Temperature coefficients of Pm:    -(0.5+/-0.05)/℃

Temperature coefficients of Im:     +0.1/℃

Temperature coefficients of Vm:   0.38/℃

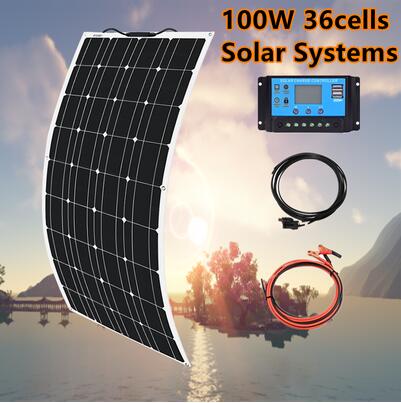

# The shipment including the following parts

1、2pcs 100w flexible soalr panel

2、1 set 3m red/black cable   with Alligator clip （1*2.5mm2）

3、1 set 3m black cable with MC4 connection  （1*2.5mm2）

4、1 set 2 in 1 adapter

5 、1 pcs 20A Controller

# Cotroller

# Product Description

Made of monocrystalline silicon substrate from a single large crystal.
Semi-flexible solar panel is the alternative solar module - lighter, thinner. It charges your on-board 12V battery of your motorhome, caravan, boat or other vehicle automatically, silently and maintenance free. ,is much more flexible than comparable solar modules. Curved surfaces such as boat decks or caravan alcoves are easily mounted junction box, for additional protection.

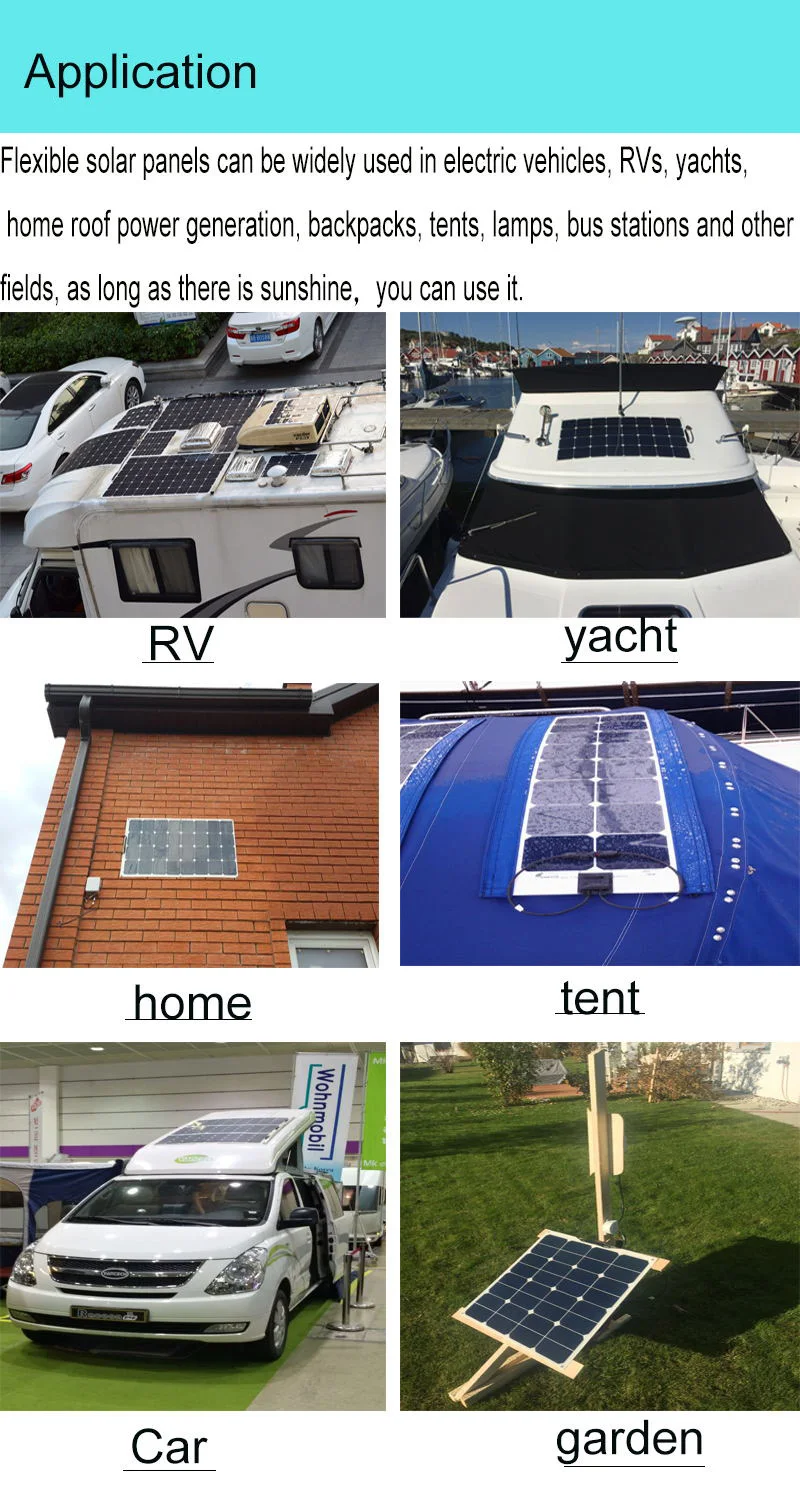

Boats/Sailboats, Yachts, Marine applications
Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places

# Highlights

Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.
Unique frameless design includes six metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards CE,TUV
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments
Positive and negative leads equipped with MC4 connectors
Two bypass diodes minimizes performance drop due to partial shade
Set up easily:
Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 3mm thick .
Built in blocking diode to prevent battery discharge at night
All weather proof. They are water-proof and UV-Resistant. Potted junction box

# Set up easily

Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 3mm thick .
Built in blocking diode to prevent battery discharge at night
All weather proof. They are water-proof and UV-Resistant. Potted junction box
