18V20W Solar Panel +12V Controller + 800W Inverter Dc12V-Ac230V Solar Power Generation Kit, For Outdoor And Home
product features:
A: This product is suitable for home, office and outdoor AC230V50HZ solar cycle power generation system.

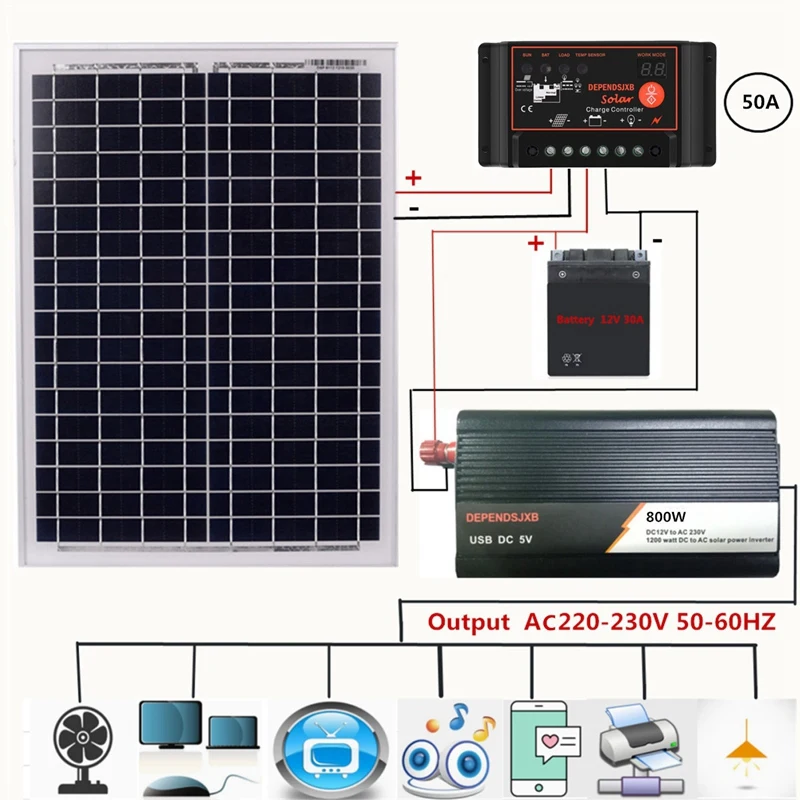

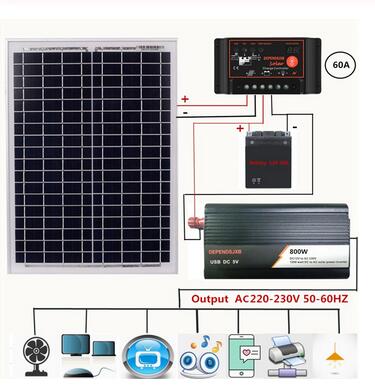

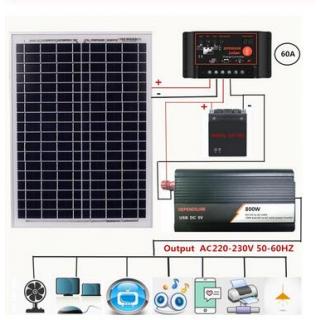

B: The principle is converted into DC12V by the amount of solar
energy and stored in the battery, and the AC230V voltage is converted
and output through the inverter.

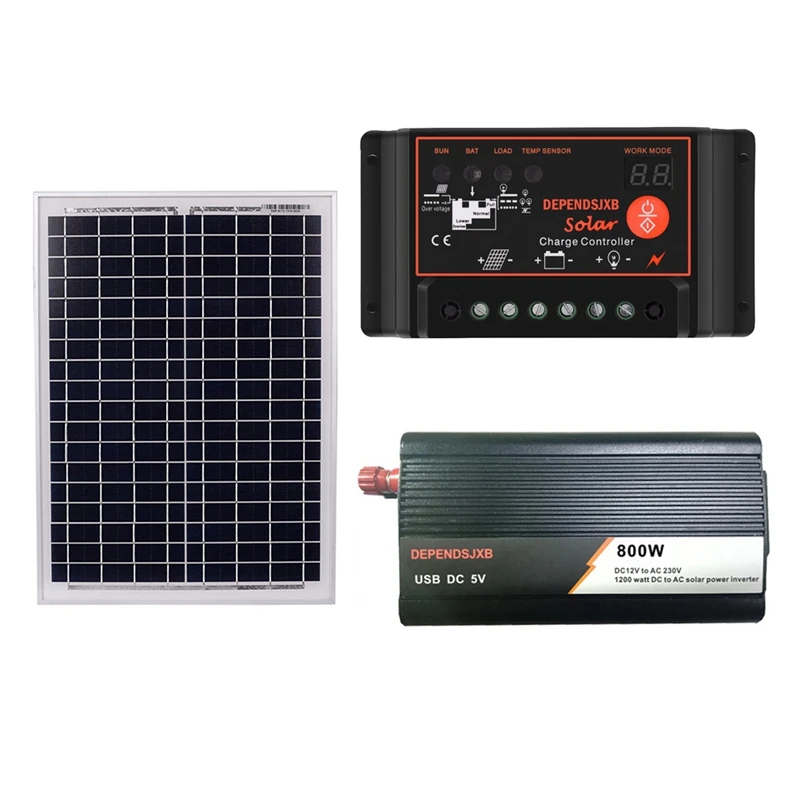

C: solar panel + controller + inverter kit

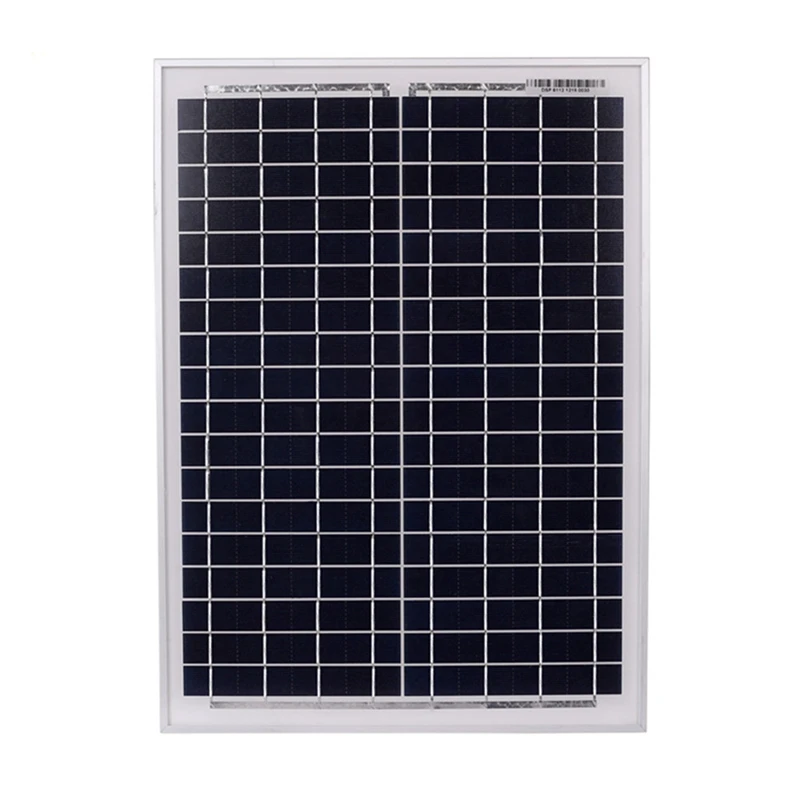

1: Solar panel parameters
Material: Class A polycrystalline solar panel
Maximum power: 20W
Maximum voltage: 21V
Working voltage: 18V
Current: 0-1000MA

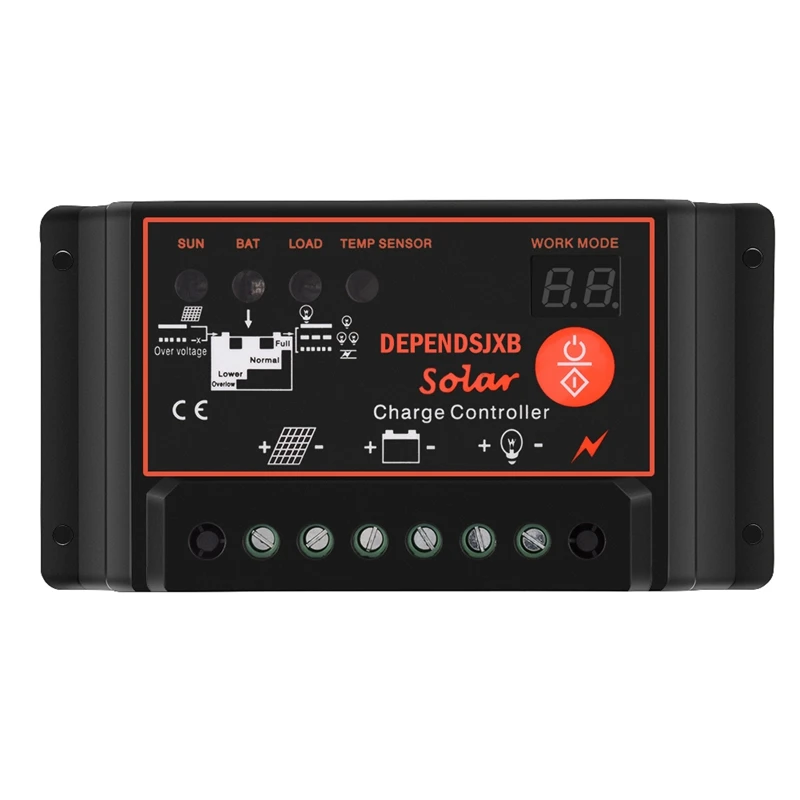

2: Solar controller parameters
Product Name: Digital Tube Solar Controller
Current: 10A/20A/30A/40A/50A/60A
Voltage: DC 12V / 24V intelligent conversion
Display: digital tube

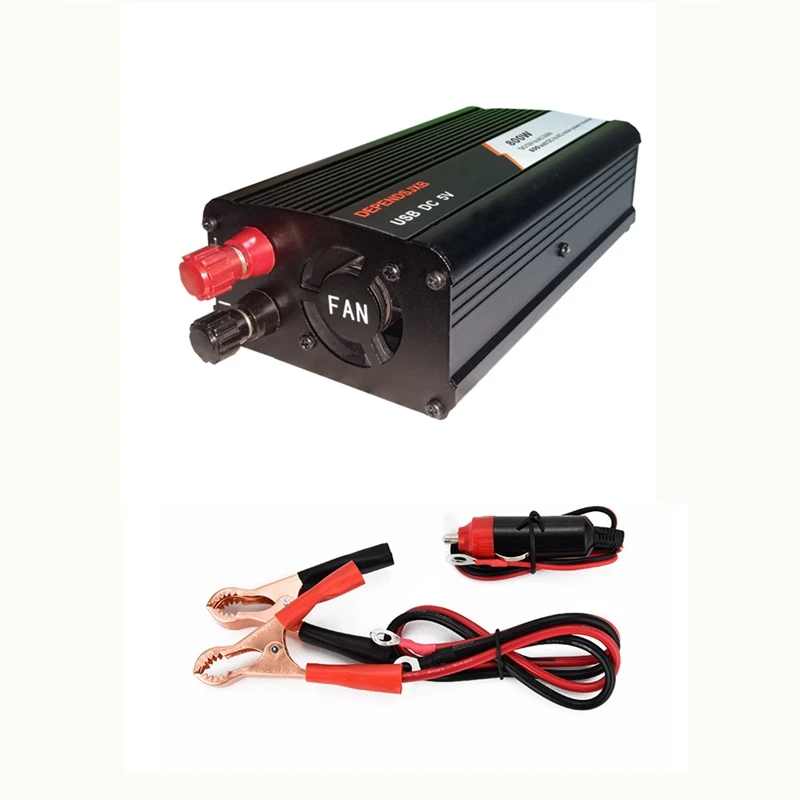

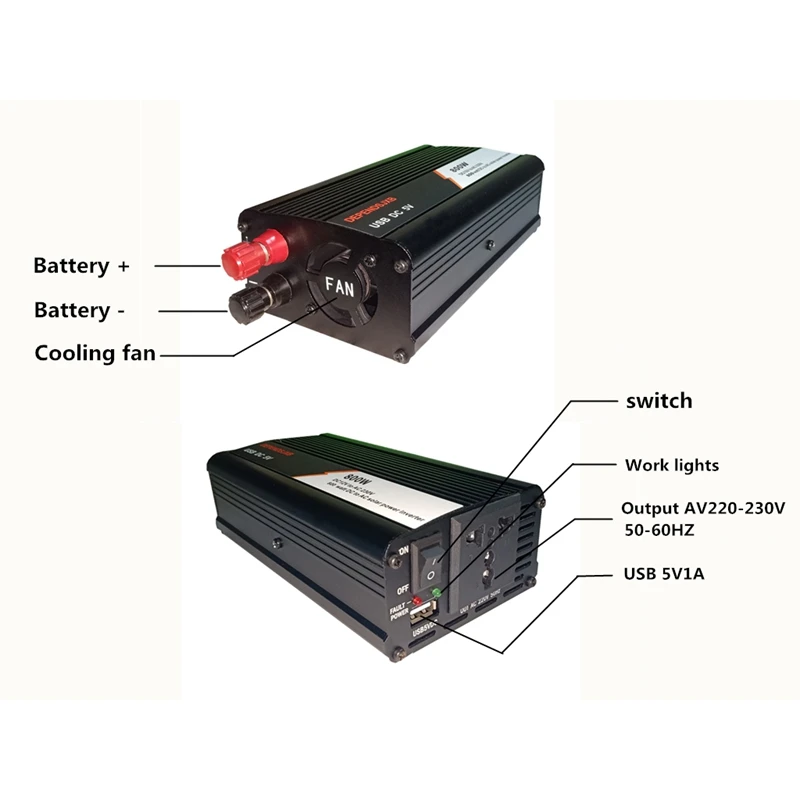

3: Inverter
Product Name: DC12V TO AC230V Inverter
Output waveform: corrected sine wave
Output peak power: 800W
Input DC voltage: 12V (Note: the positive and negative poles can not be reversed and will be damaged)
Output AC voltage: 230V 50HZ
Output AC socket specifications: universal socket
Low pressure alarm: 10V DC ± 0.5V
Low voltage protection: 9V DC ± 0.5V
Overvoltage protection: 15.5V
Protection function: overload, short circuit, overheat, reverse polarity, undervoltage/overvoltage
Colour: Black
Material: metal + polysilicon
Package Contents:
1 * solar controller
1 * solar panel
1 * inverter
2 * connecting lines
1 * English instruction manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of
the item in the picture a little different from the real thing. The
measurement allowed error is +/- 1-3cm.
