Feature
a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c.

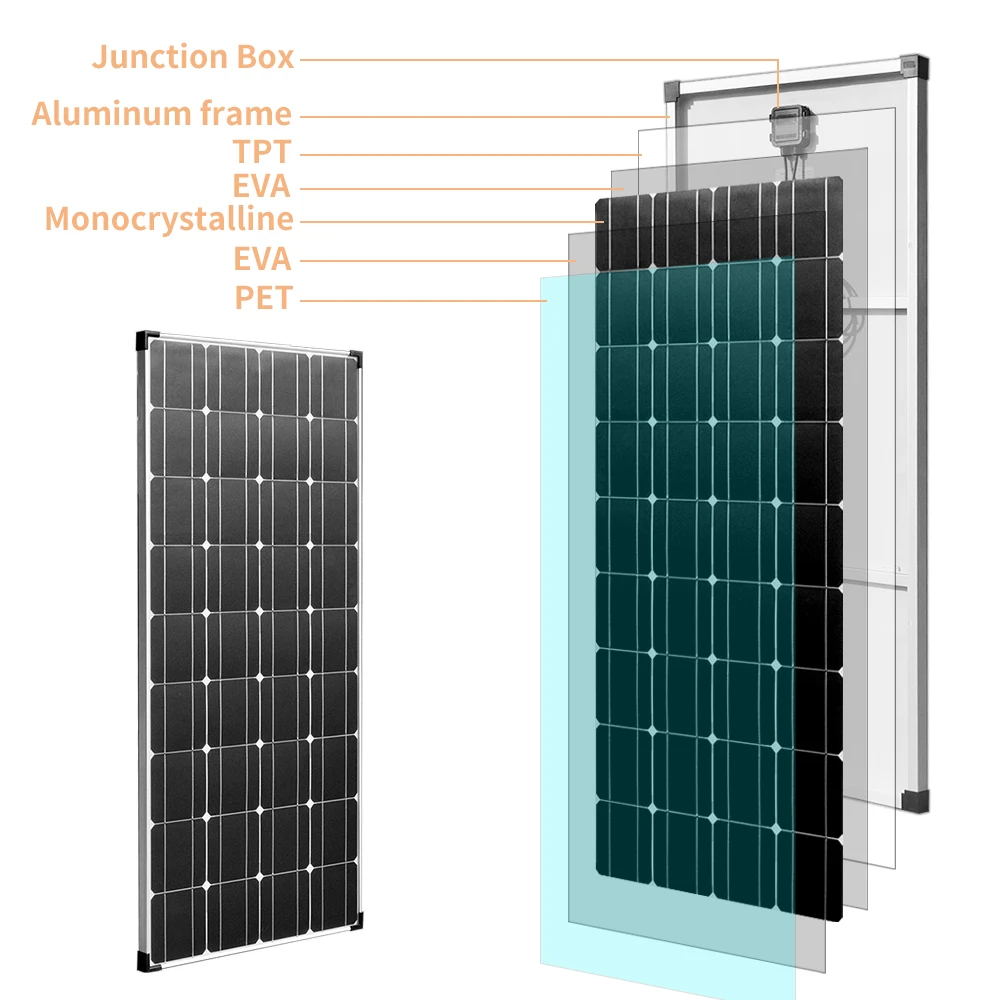

The surface is made of PET and treated with a special process, which is
more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e.

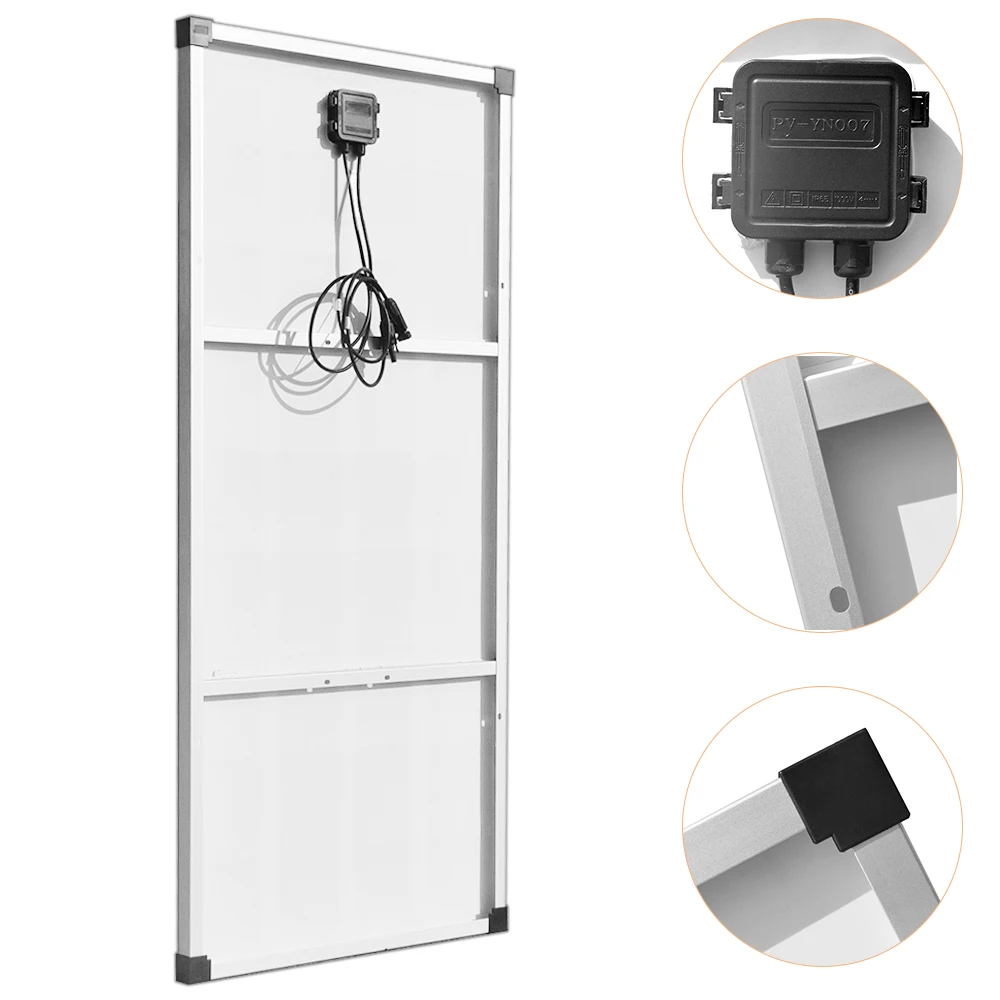

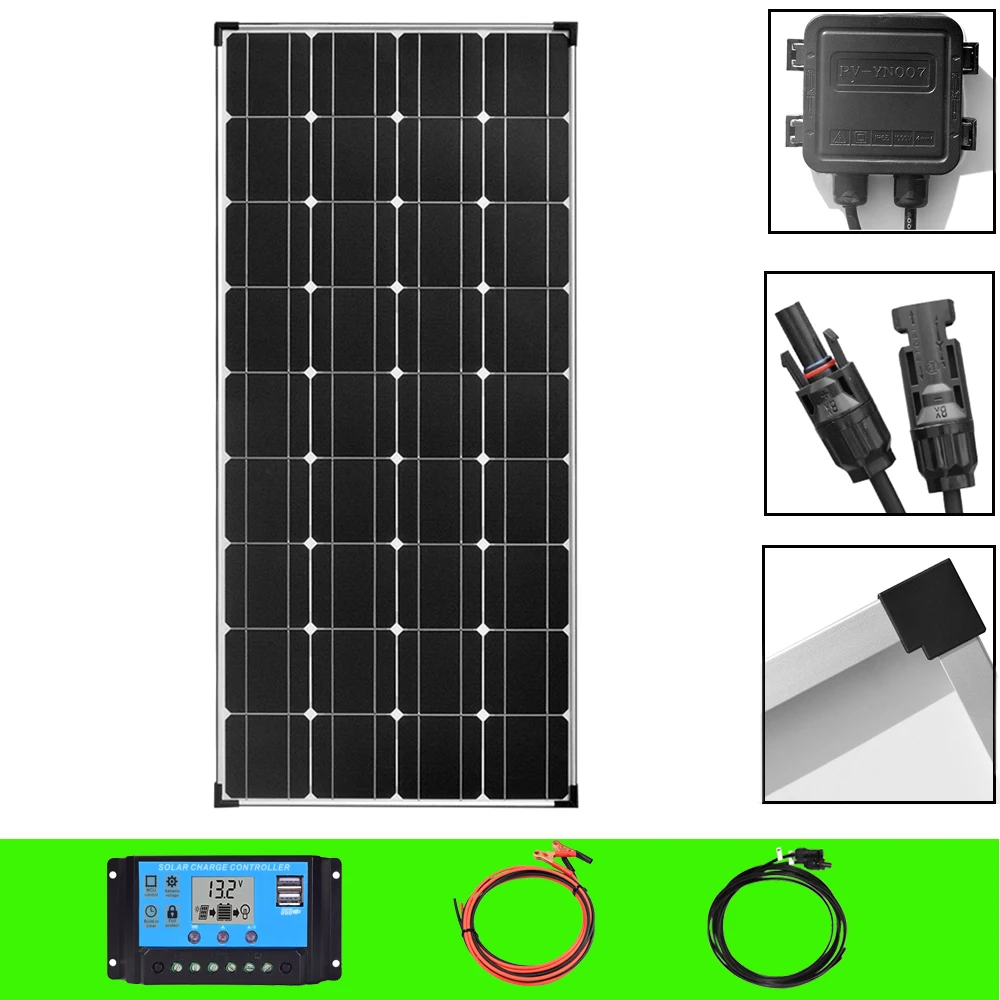

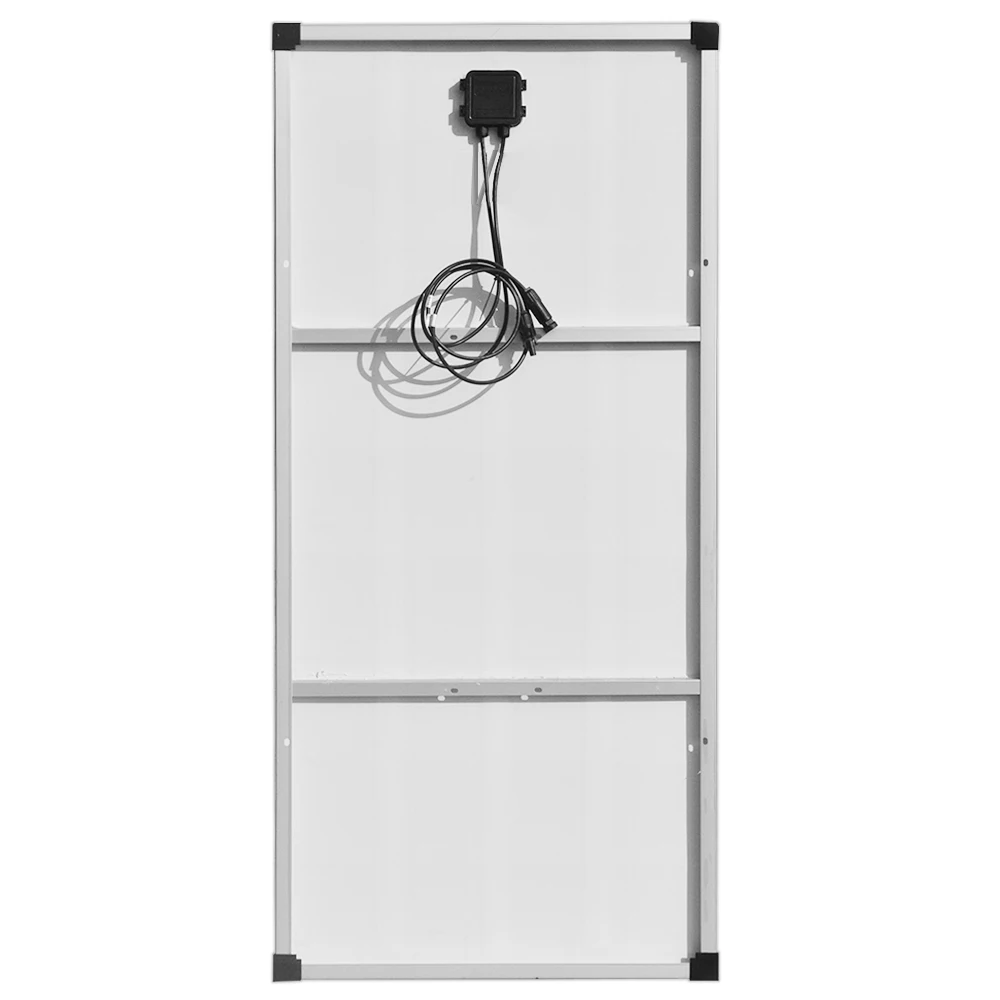

The junction box has an IP67 waterproof design, which includes a bypass
diode, and the circuit adopts input overcurrent protection and reverse
protection design.
f.

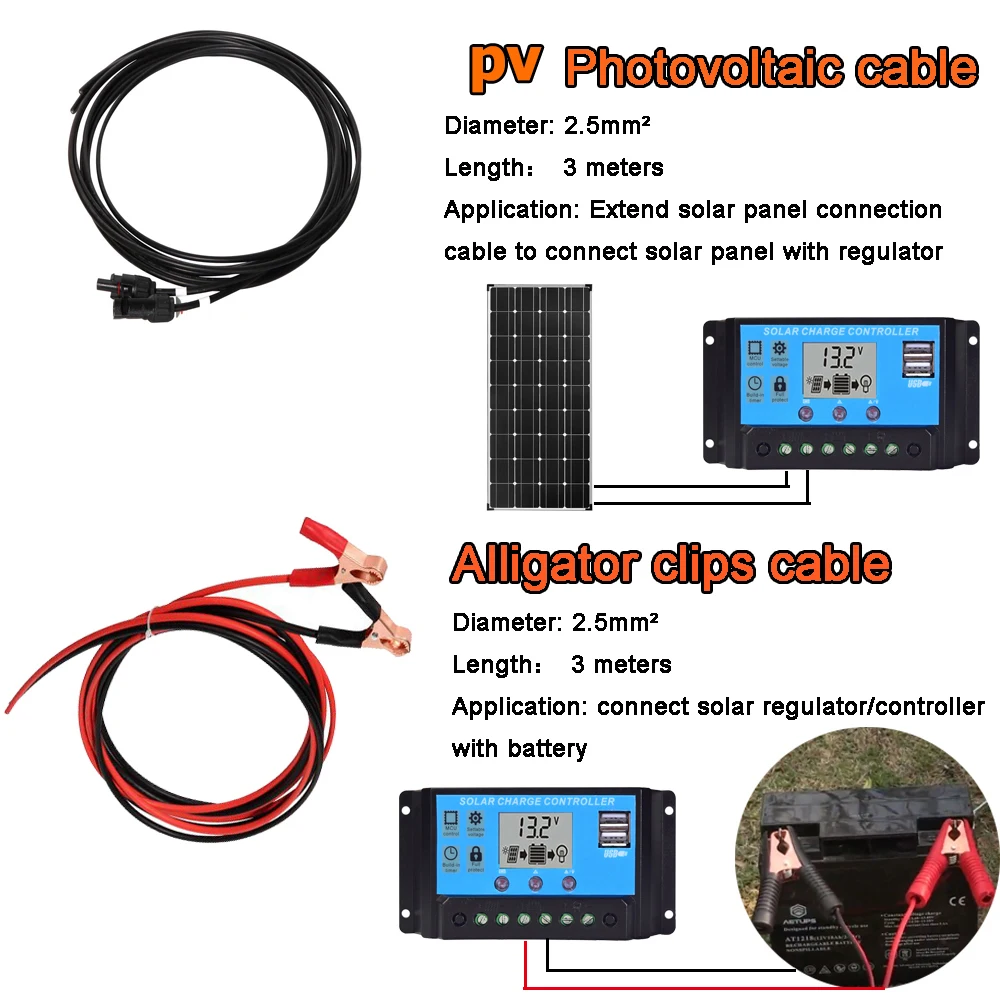

The PV cables connectors for photovoltaic modules are used for outgoing
cables. The outdoor use is safe, waterproof, high temperature
resistance and weather resistance. PV connectors are easy to use, plug
and play.
g. This product is a solar module. It is recommended to be used with controllers and batteries.

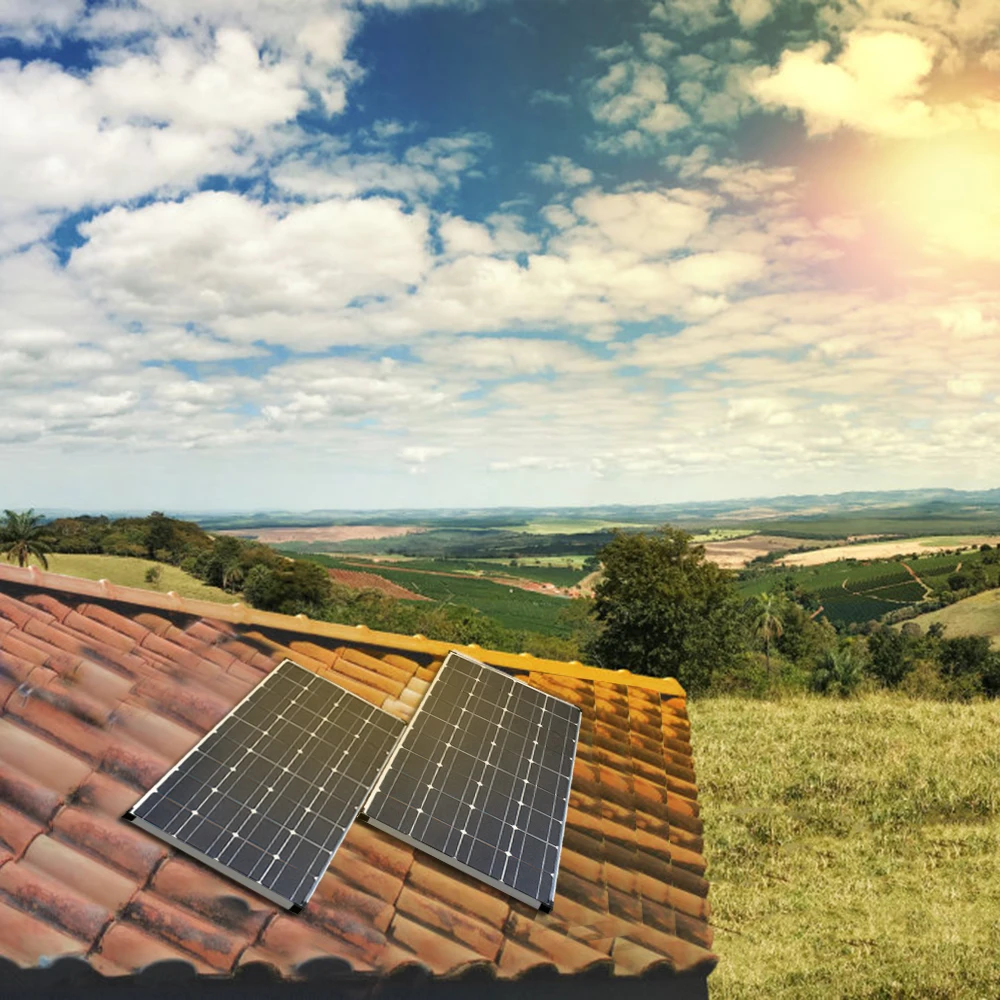

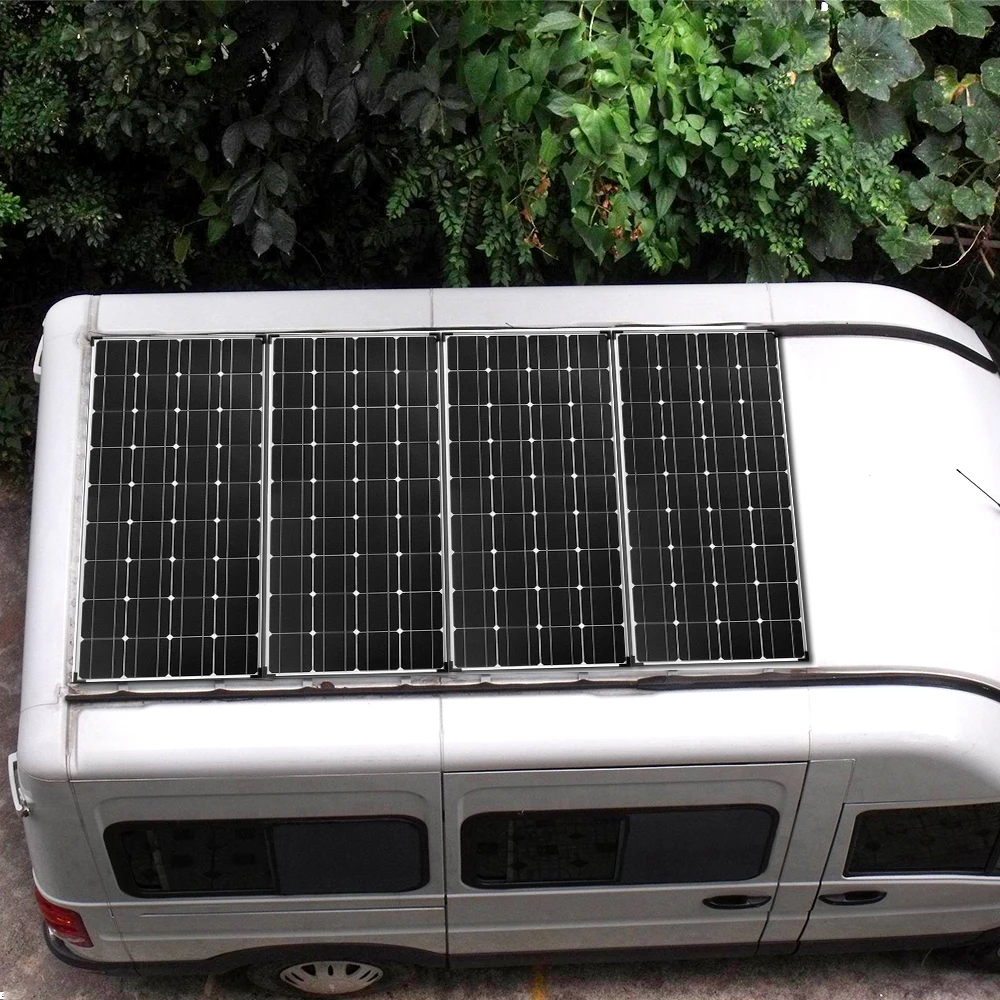

It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.
Specification
Maximum power(Pmax) 150W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 36pcs
Weight 3100g

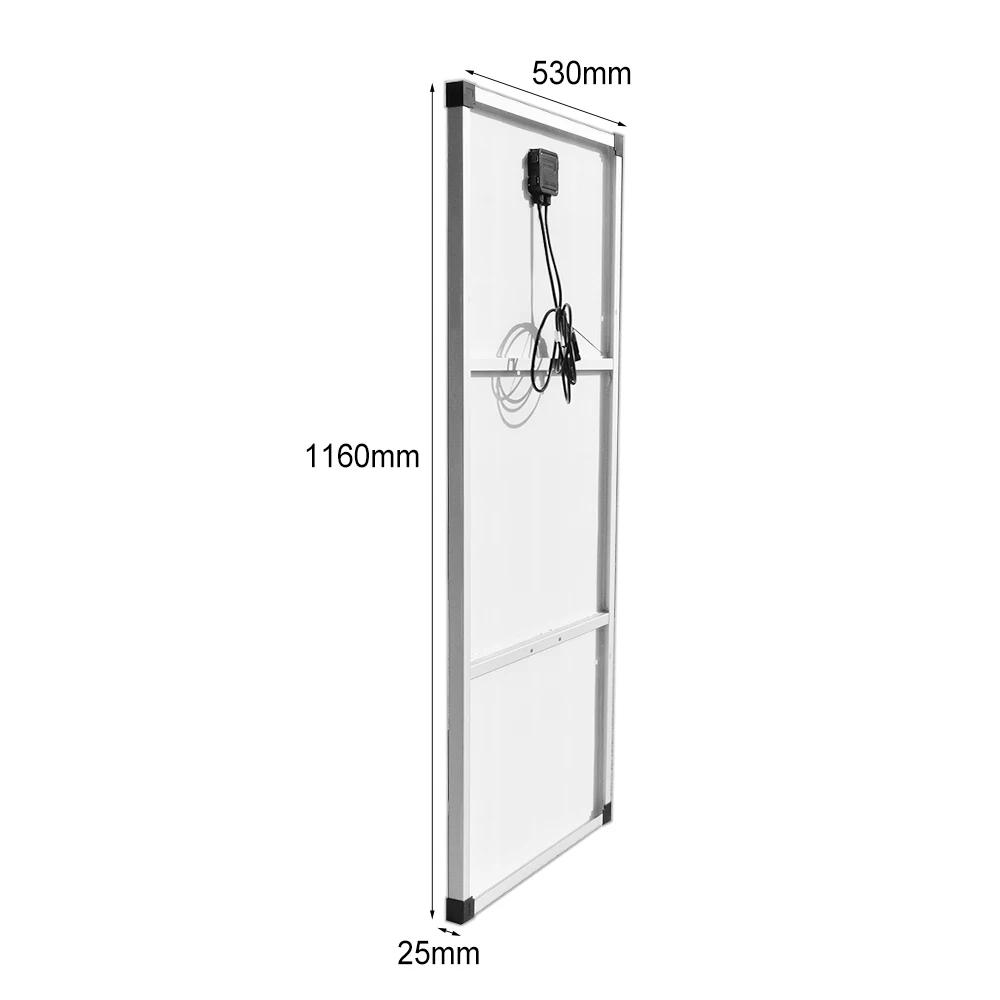

Size 1160*530*25 mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

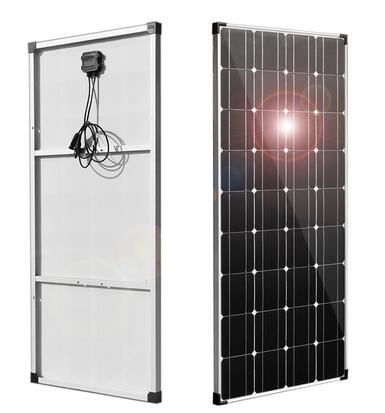

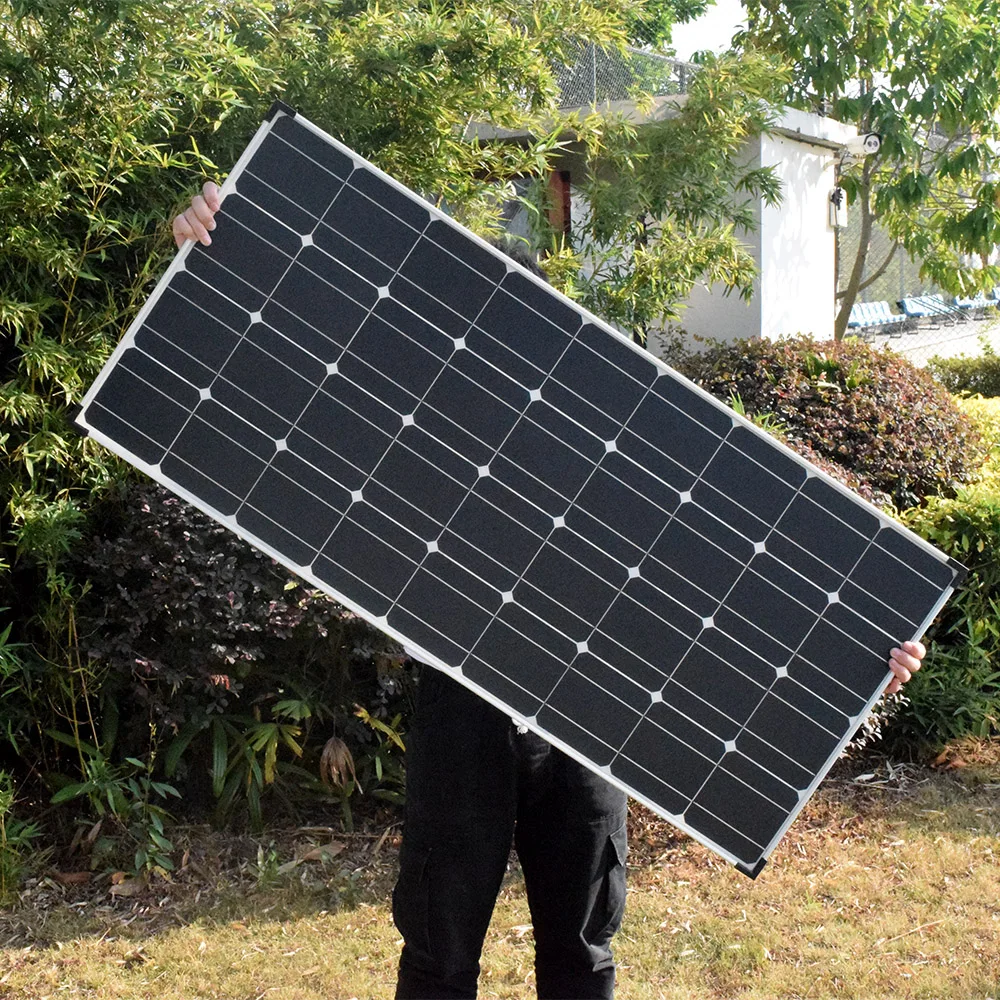

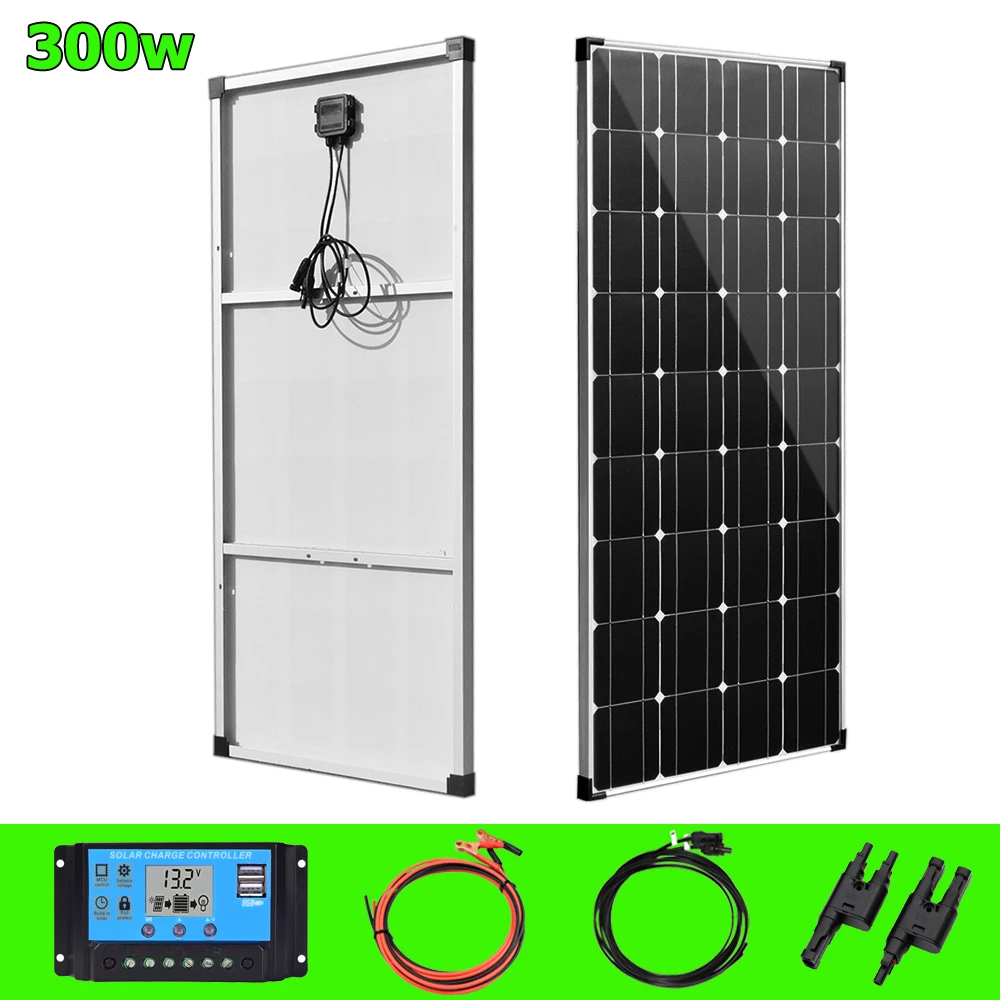

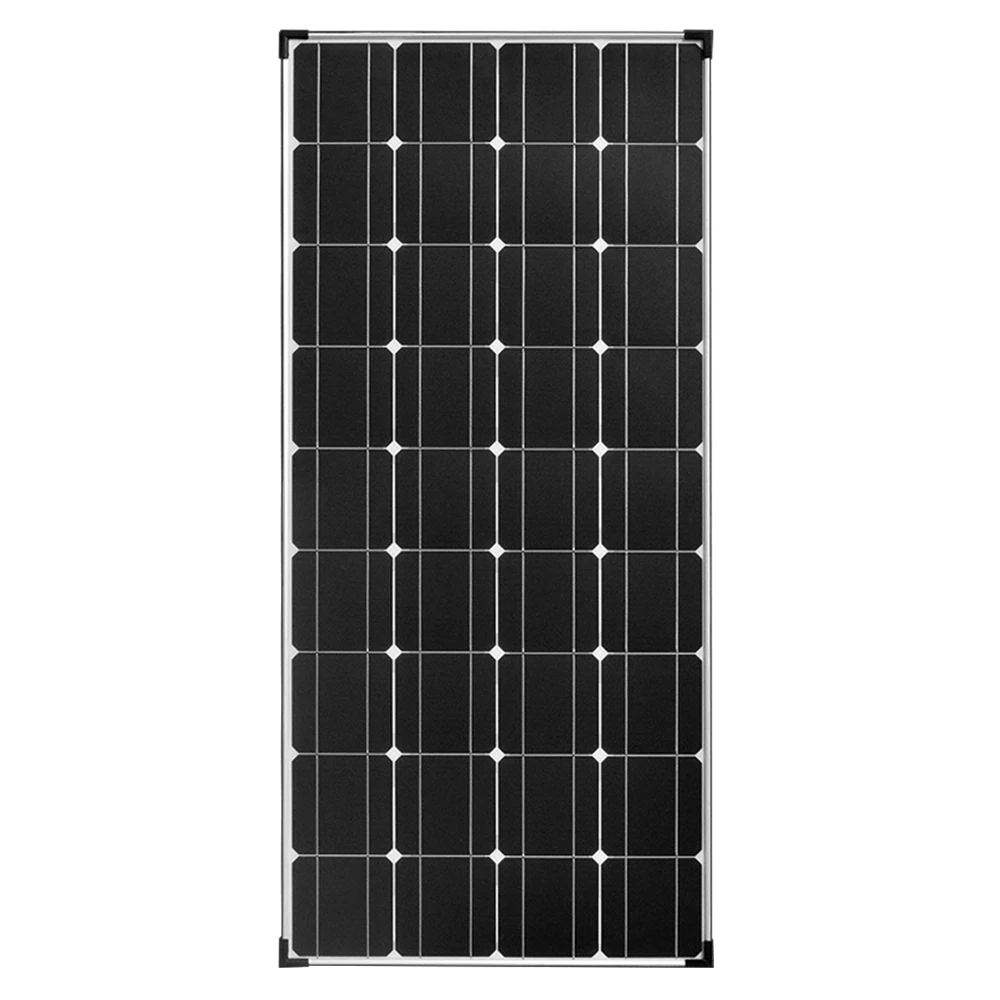

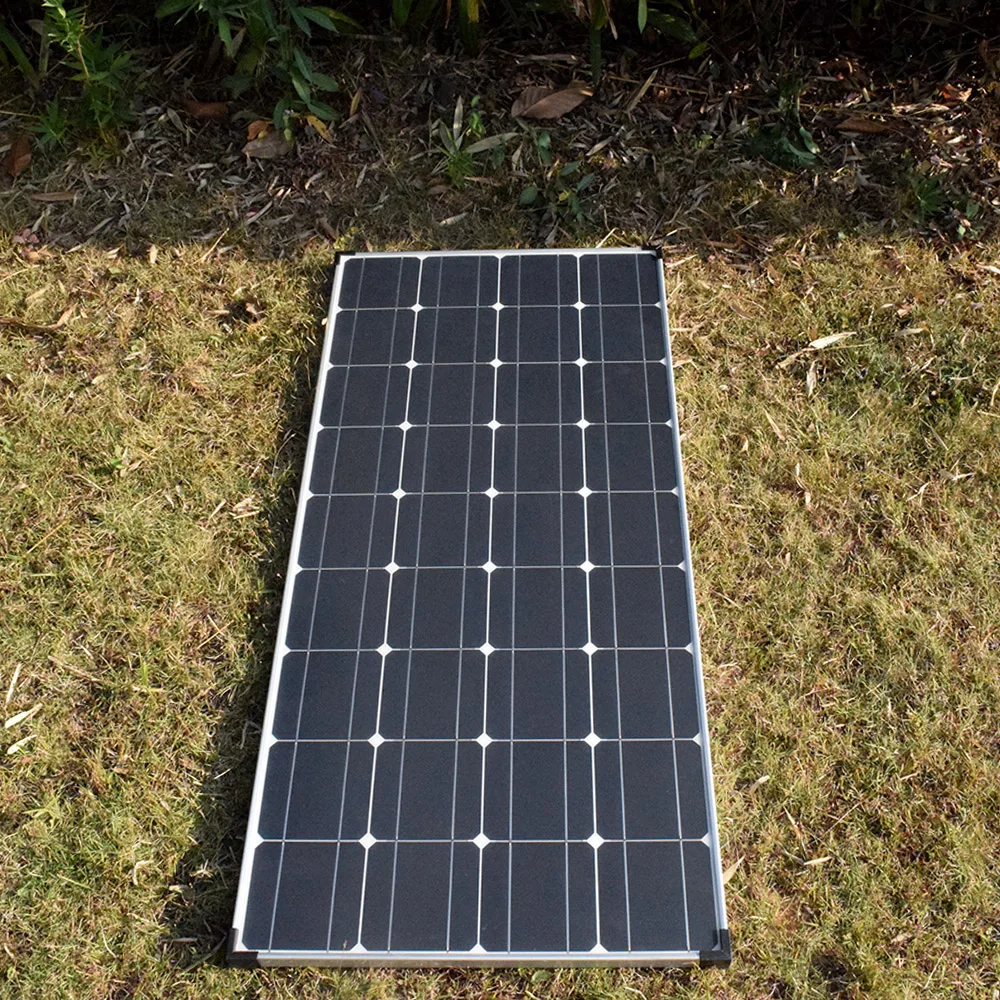

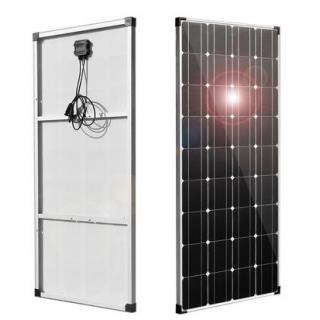

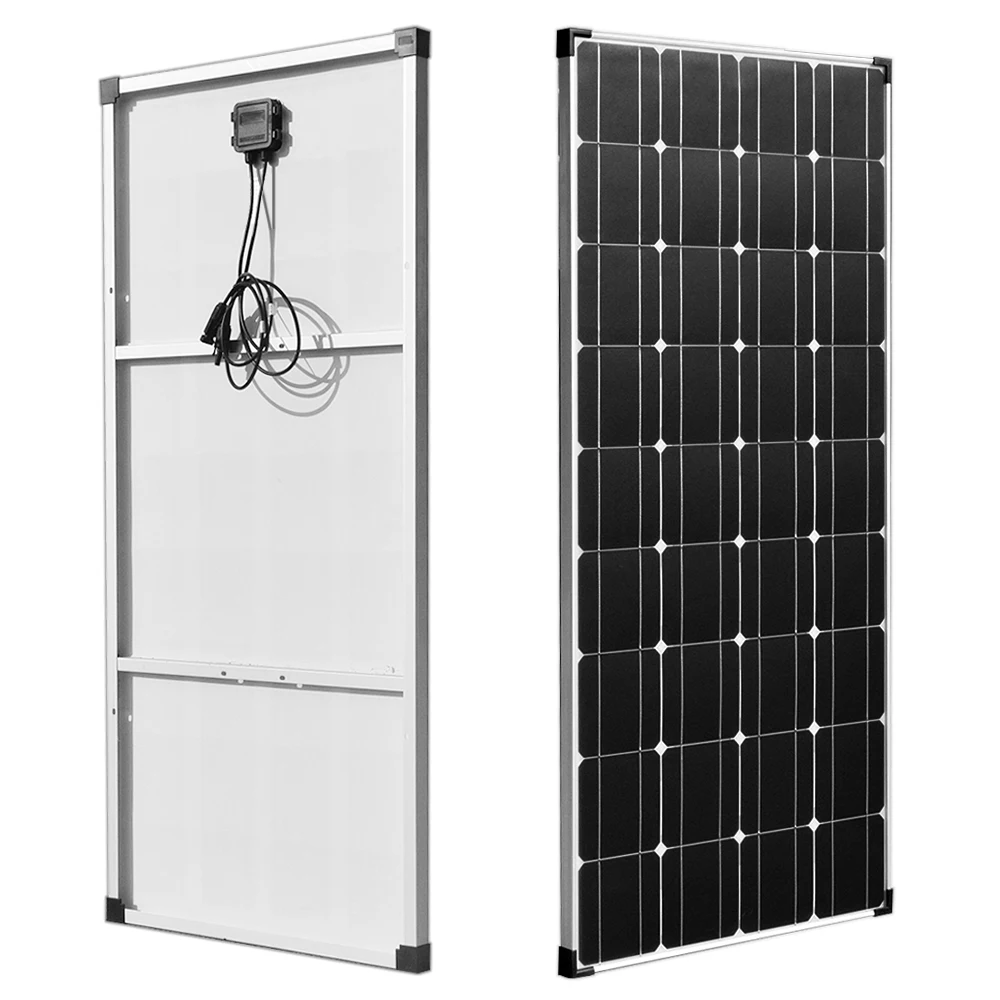

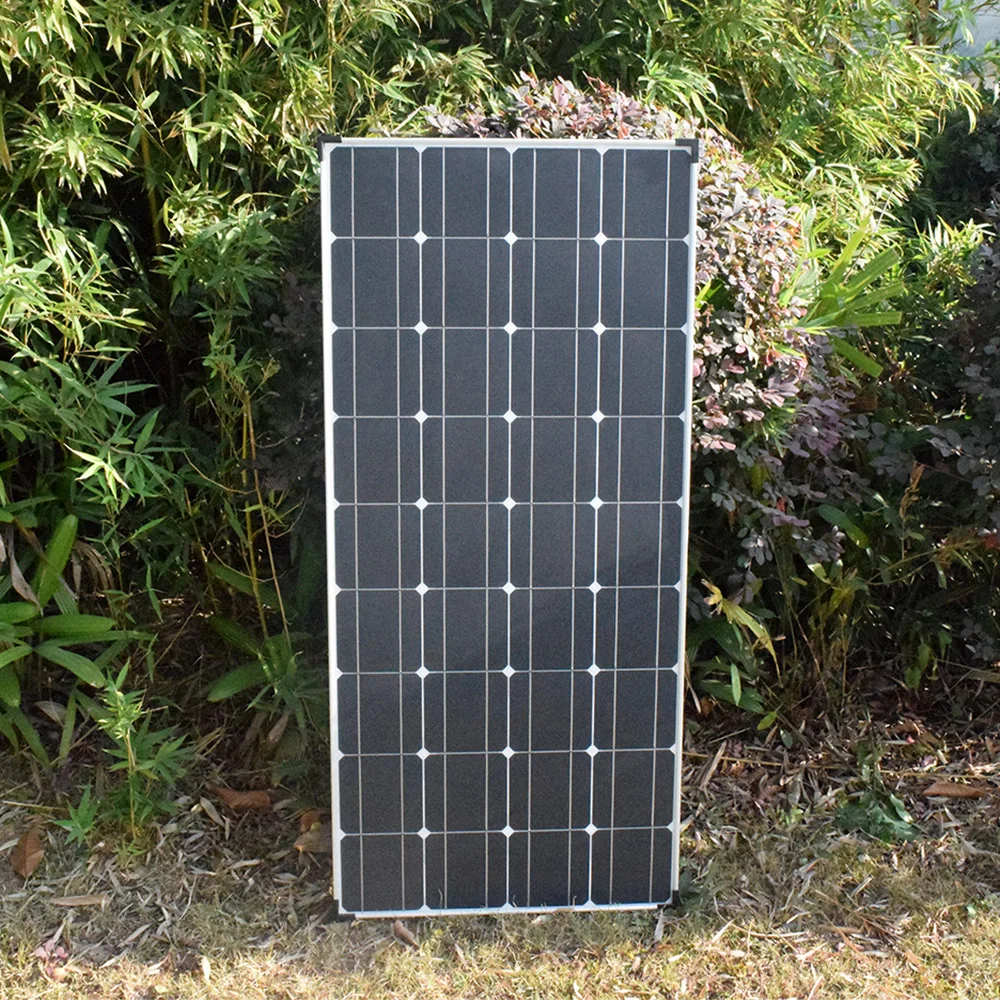

flexible solar panel with aluminum frame
this
solar panel is not glas solar panel,it is made from flexible solar

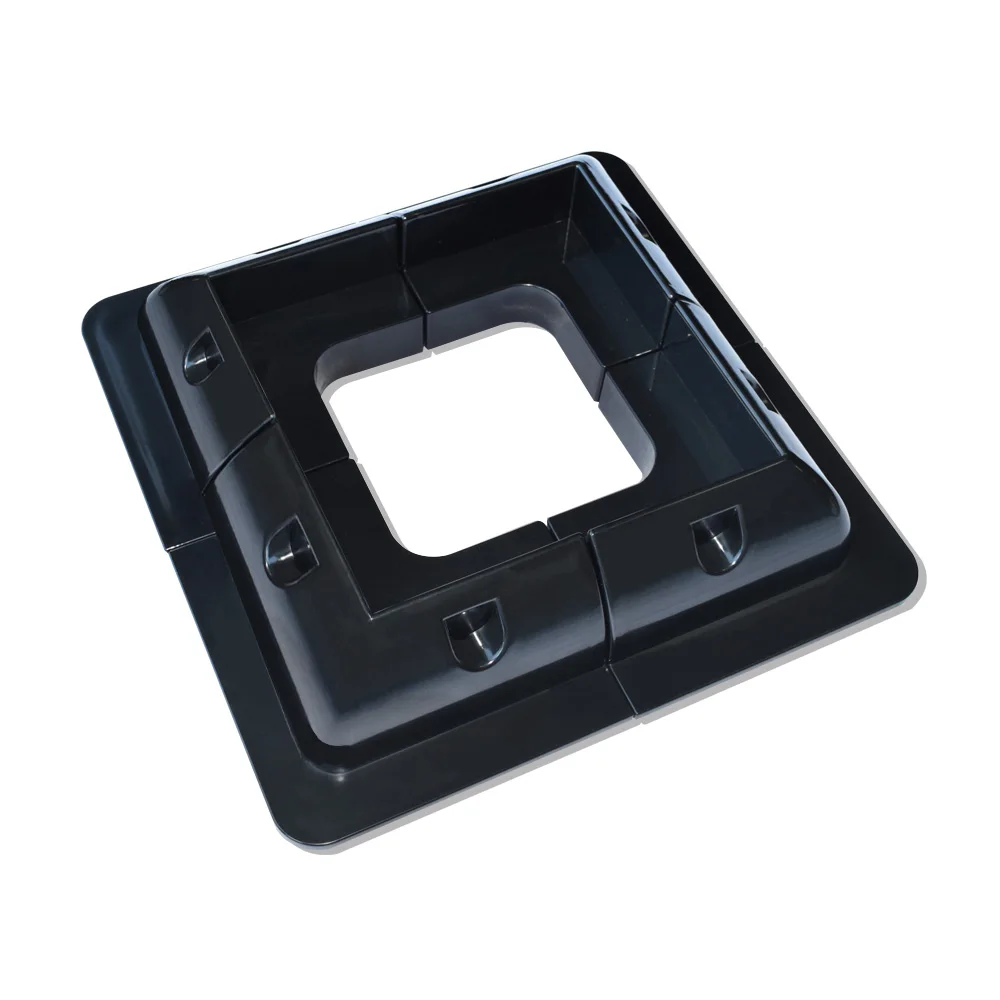

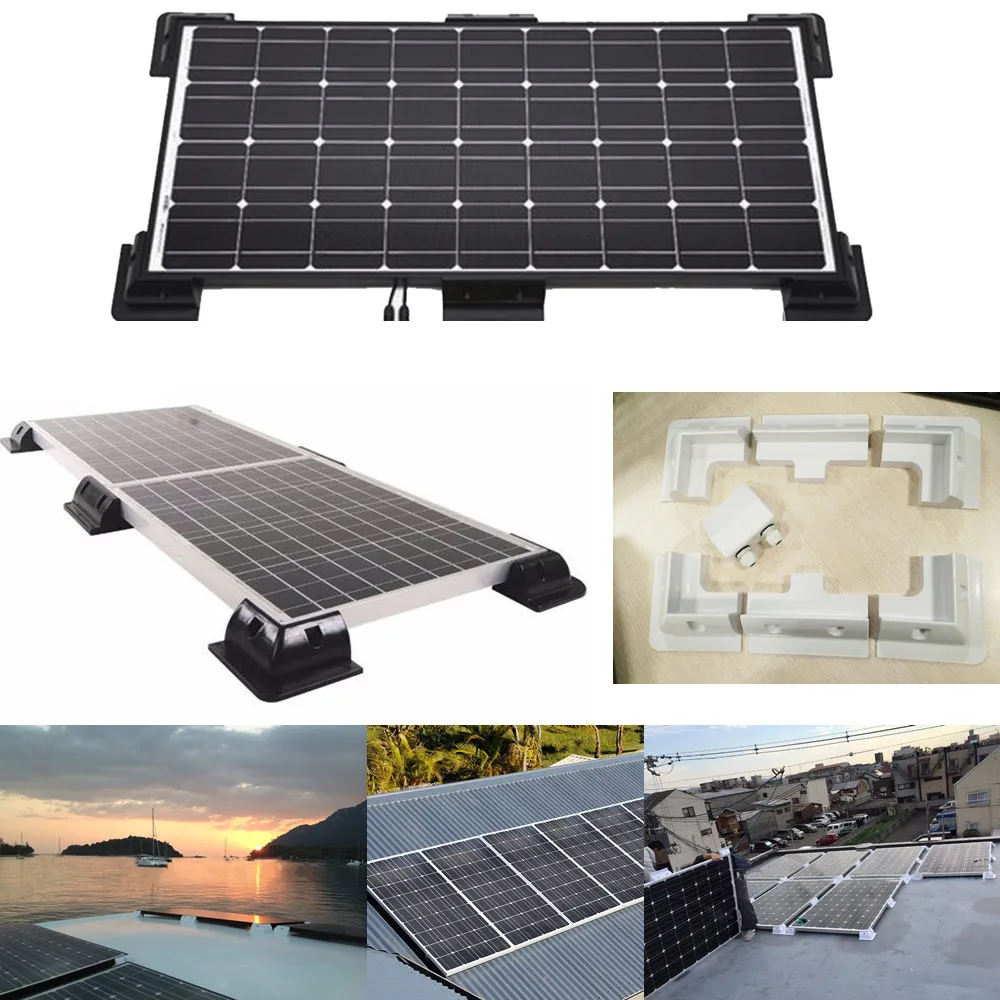

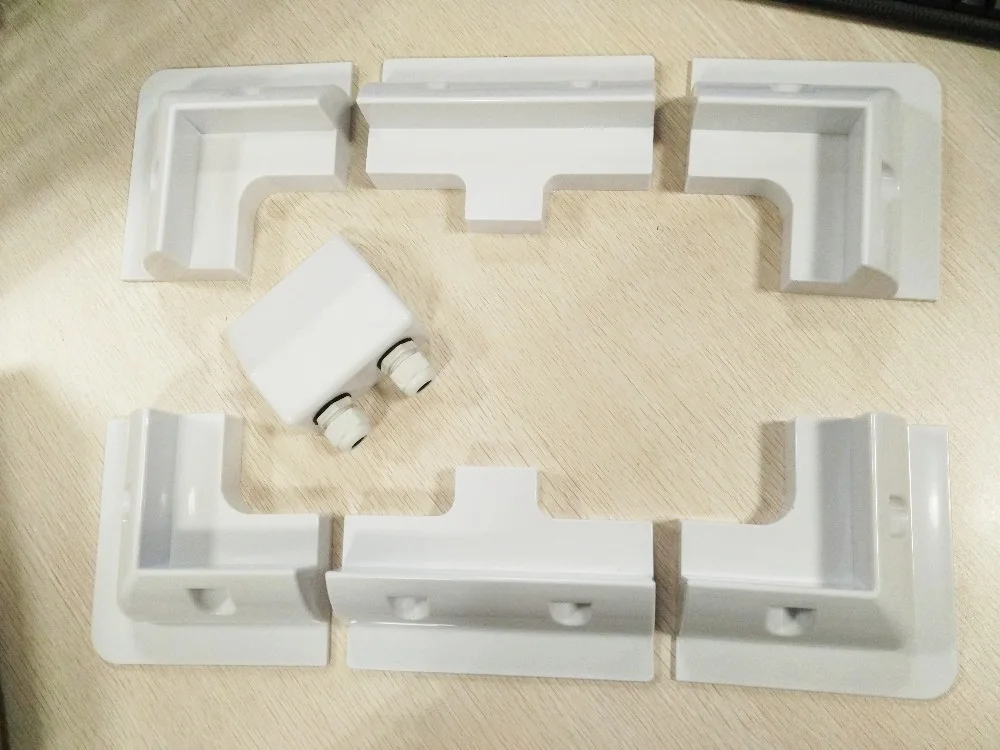

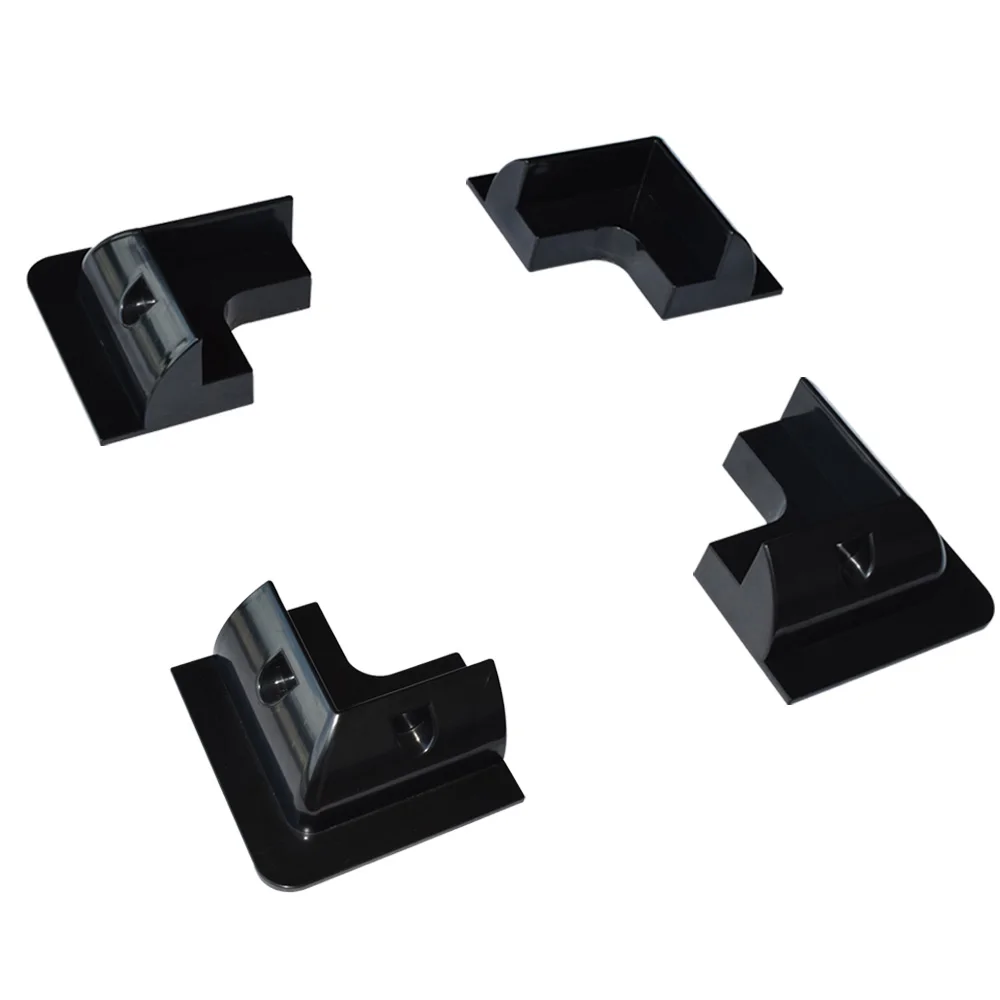

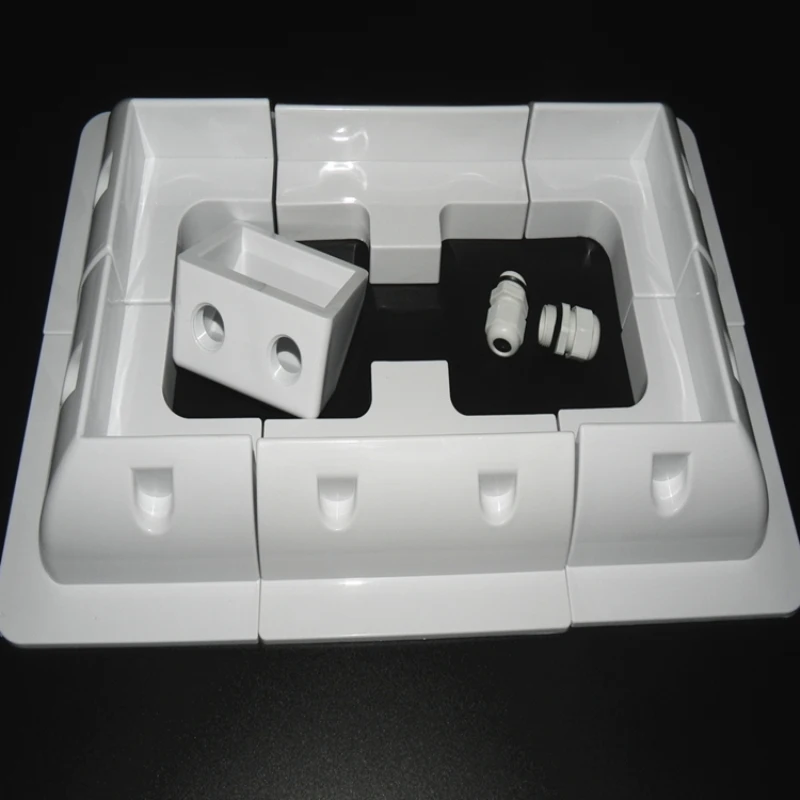

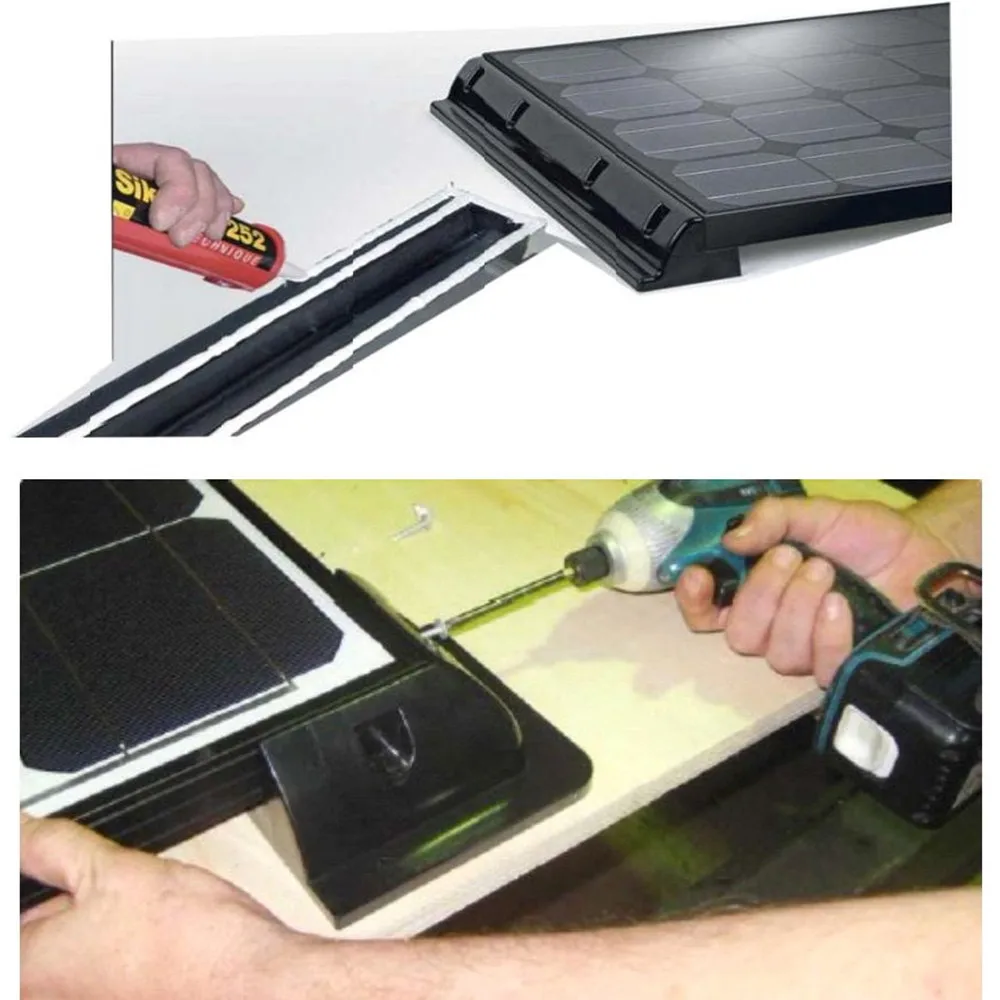

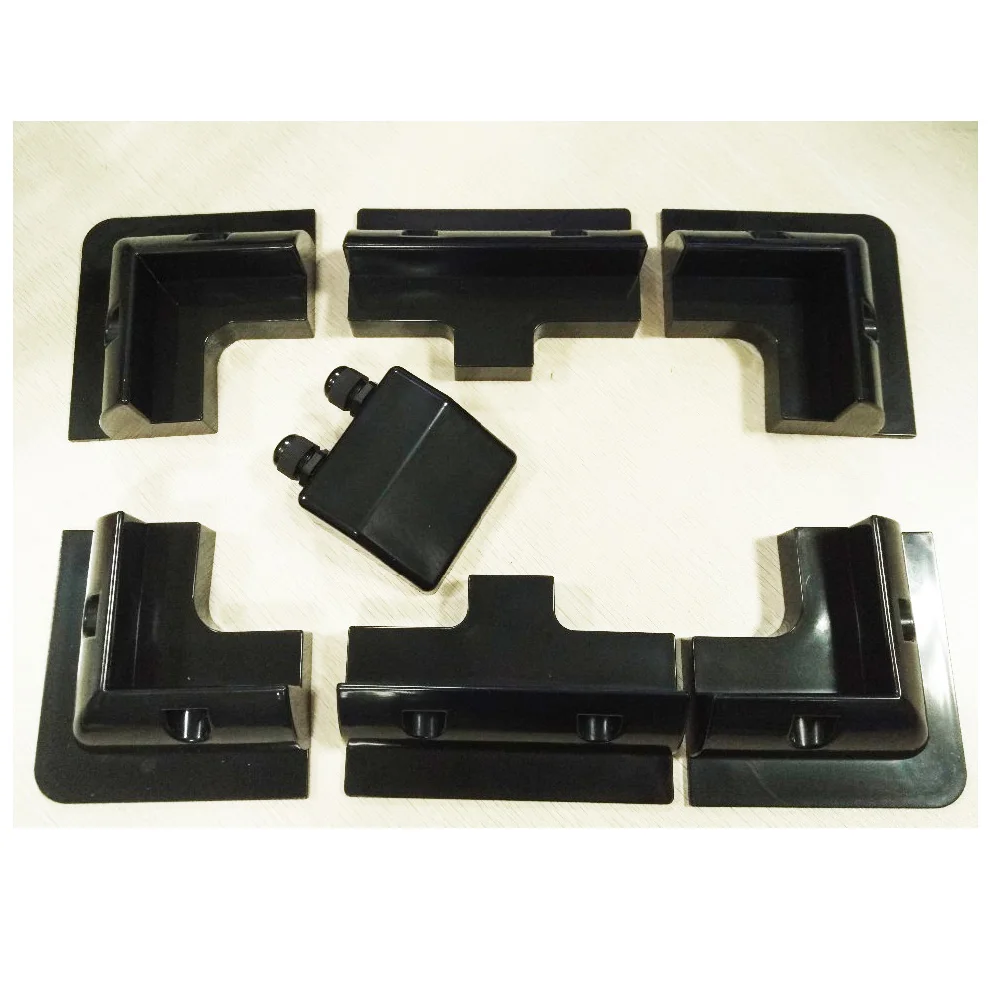

panel and aluminum frame.you can use Bracket to install it. it is more
light than glass solar panel.
