Specification：solar paenl

Maximum power(Pmax)   ： 150W

Output tolerance     ：    ± 3%

Cell efficiency    ：        21%

Operating temperature（NOCT）          45±2℃

Temperature range        -40℃～+80℃

Number of cells       ：      36pcs

Weight   ：       2040g

Size     ：780*680*30 mm

Back panel color    ： white

Cell type   ： 161*161mm New PERC
solar cells

Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

Specification：controller

Features

a. Select high-efficiency 161*161mm 12 PERC monocrystalline silicon solar cell, the power generation efficiency is about 1.3 times that of conventional polycrystal, and the overall area is smaller under the same power.

b. Using the second-generation component packaging process, it is thinner, lighter, softer and has a longer life.

c. The surface is made of PET material, which is treated with special technology to make it more wear-resistant and improve the absorption efficiency of sunlight.

d. It has high light transmittance, is safe and reliable, is not afraid of high temperature, and has no danger of burning or explosion.

e. Junction box IP67 waterproof design, including bypass diode, the circuit uses input overcurrent protection, reverse protection design.

f. The assembly outlet uses photovoltaic special cable and photovoltaic special MC4 connector. It is safe, waterproof, high temperature resistant and weather resistant for outdoor use. The MC4 connector is easy to use and plug and play.

g. This product is a solar flexible component. It is recommended to be used with controllers and batteries. It is suitable for various scenes such as RV, household, camping, yacht, street light and solar power station.

Package Includes:

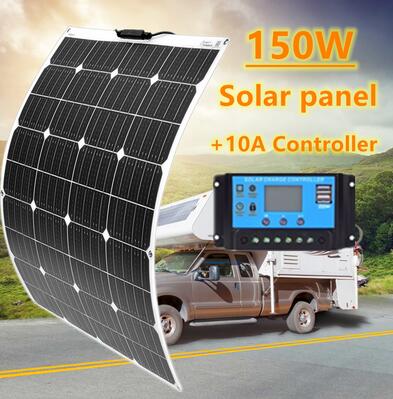

1.  1 pcs 150W flexible solar panel

2.  1pcs 12v/24v/10A controller

Precautions for use

a. This product must not be in contact with highly corrosive substances;

b. It is strictly forbidden to modify, disassemble, or reassemble, drop, knock or violently hit the junction box and products to avoid stepping on it and avoid scratching the surface with hard objects during use. The angle between the flexible component and the position before bending may not be greater than 25°;

c. A large amount of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, which may cause burnt;

d. The ambient temperature range suitable for this product: -20 ° C - 80 ° C, please do not exceed this range;

e. Solar panels must be installed in areas where there is good sunlight and no shadows. The long-term work of solar modules in shaded sunlight may present a risk of burning;

f. It is strictly forbidden to connect the positive and negative poles of the product together. It is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the PV module must be less than the rated power of the controller (rated voltage × rated current), and the controller is strictly prohibited from operating.

h. The voltage of the PV modules connected in series and connected in parallel to the controller needs to be within the PV input voltage range of the controller.

i. The inverter can only be connected to the battery and cannot be directly connected
